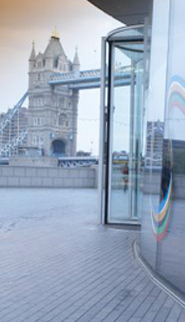

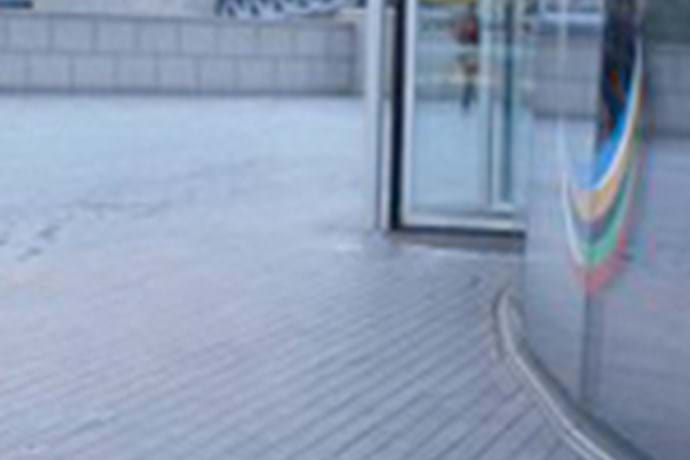

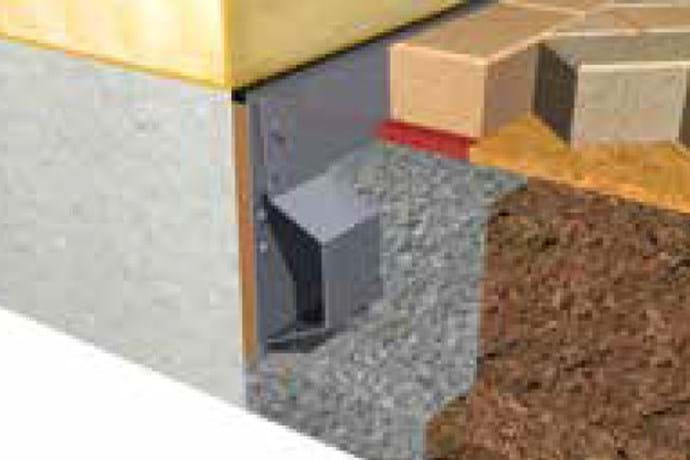

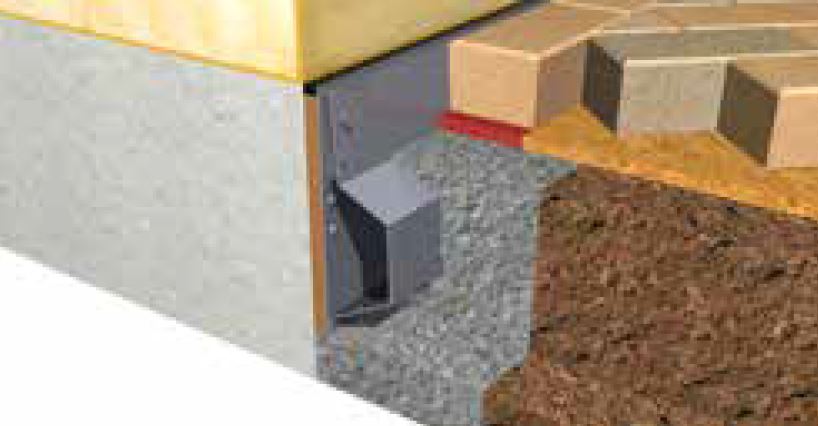

A discreet surface drainage channel that can be installed directly against a building, wall or other external landscape feature, to provide effective drainage of surface liquids from vertical surfaces, door thresholds and the adjacent pavement area. FacadeSlot channels can be made to follow the building perimeter whether straight or curved. The system can accommodate rainwater downpipes which, when positioned over a simple rainwater inlet box, can eliminate the need for a separate drainage network for the roof area, achieving a more efficient drainage design.

Load Classification: A15.

Available channel widths:
50mm, 75mm, 115mm

Performance

  • Strong and durable
  • Watertight
  • Rigid steel lining
  • High capacity
  • Stepped fall & self-cleansing
  • Maximum intake
  • Continuous interception(reduced wash-over)
  • Fewer channel joints

Installation benefits

  • Time and cost savings
  • Quick installation
  • Easy to handle
  • Impact resistant
  • High quality finish

Client benefits

  • Reduced maintenance cost
  • Safe system
  • Tamper proof
  • No moveable parts

Design benefits

  • Simple system, quick design
  • Precise and aesthetic
  • Design flexibility
  • Proven performance
  • Quality assurance

Installation benefits

  • Time and cost savings
  • Quick installation
  • Easy to handle
  • Impact resistant
  • High quality finish

Download the installation Guide

Materials & Finishes

  • Channels should be impact-resistant and manufactured from galvanised sheet steel to BS EN 10346: DX51D+Z275-NA-C.
  • Channel material should have 0% water absorption.
  • All materials used in manufacture of channel units should be heat resistant and recyclable.
  • The manufacturer should ideally operate in accordance with the European Environmental Standard BS EN ISO 14001.
  • Channel units should be level invert and supplied in 3.0m, 1.0m or 0.5m lengths
