Channel & Grating for fire-fighting lift - stainless steel grade 304, (min.) 1.5mm thickness channel. Designed to prevent water, such as from a sprinkler entering as lift well.
Modular Channel and Gratings for use in unfinished floors such as factories, plant rooms and service areas.
For use in shopping precincts or similar areas subject to pedestrian traffic. Grating of nickel bronze set in frames of stainless steel - grade 304.
Fire-fighting channel
- Channel has two 150mm outlets in corner locations, to deal with flow of 25 l / s in accordance with BS 9999: Code of Practice for Fire Safety in the Design, Management and use of buildings.

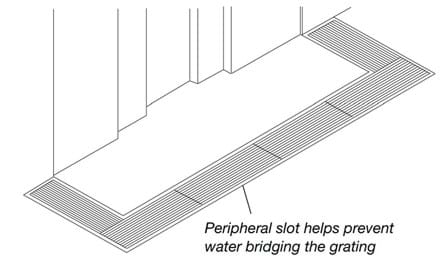

- Streamline' gratings are secured in the channel leaving a peripheral slot 10mm wide.
- Load class A15.
Jubilee Modular system
- Security locking deters unauthorised removal of gratings.
- Modular parts enable forming of short runs, junctions and corners.
- Gratings made from sheraradised ductile iron.
- 250m2 drained per single outlet (based on BRE rainfall figures of 75mm / hr).
- Load class B125.

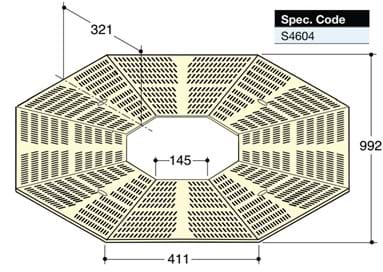

Tree Grille
- 8 gratings set in 2 sections allow fittings around and existing tree.
- Suitable for tree trunks up to 300mm dia.
- Matches decorative channel grating SN23130.
- Load class A15.
Channel & Grating for firefighting lifts
The channel is manufactured in 1.5mm stainless steel grade 304. The gratings are also made from Stainless steel grade 304.
Jubilee Modular system
Channels are made from 1.5mm thickness stainless steel grade 304. Gratings are made from sherardised ductile iron.
Tree Grille
The versatility and durability of nickel bronze maintains its popularity. Particularly suited to mixed traffic conditions encountered in pedestrian areas.
