An economical range of extruded aluminium gutter sections designed for traditional wet jointing on site. AX gutters are available in 3 profiles now with the new SnapFix design in a choice of sizes ideal for where a high capacity gutter system is required.

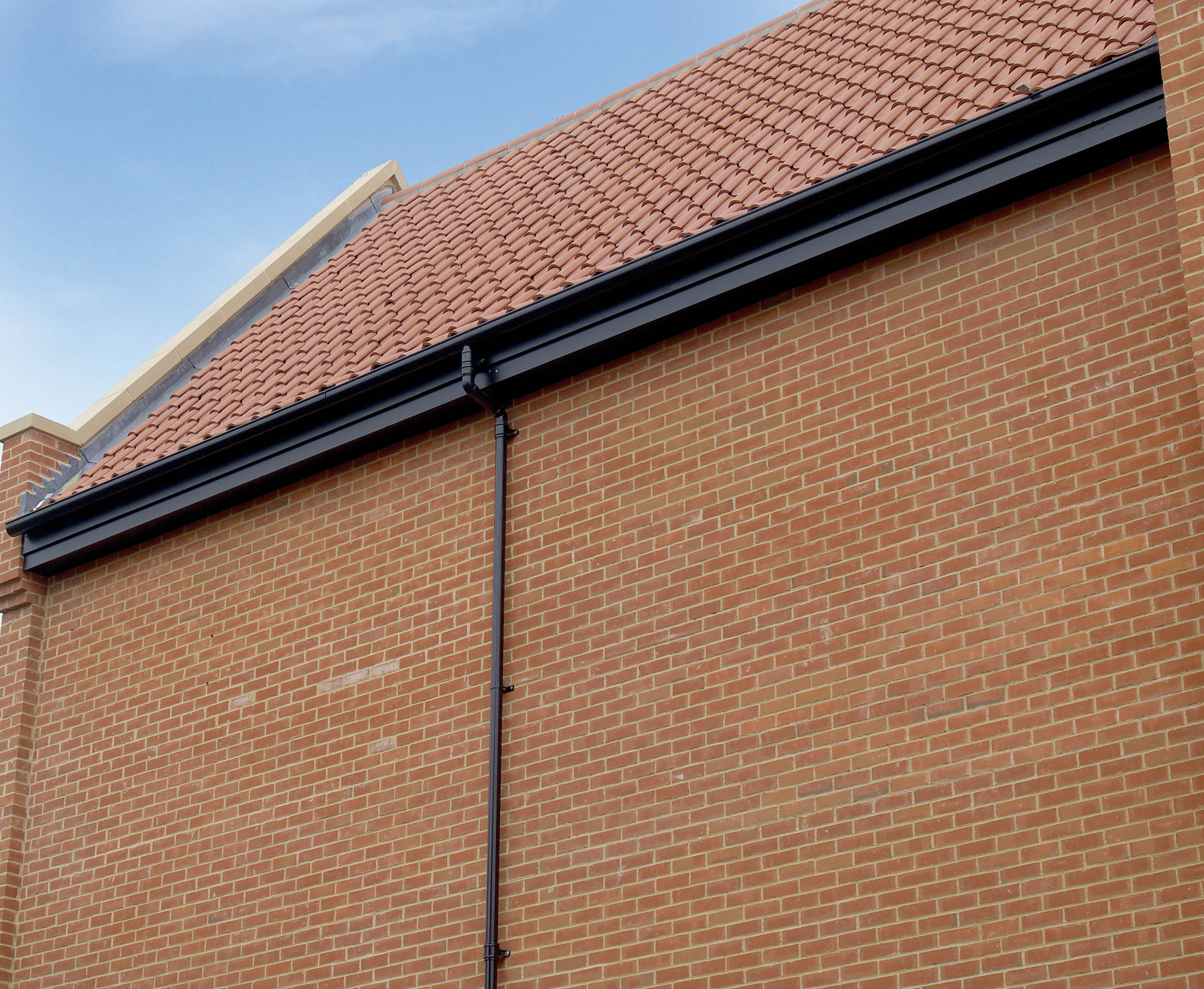

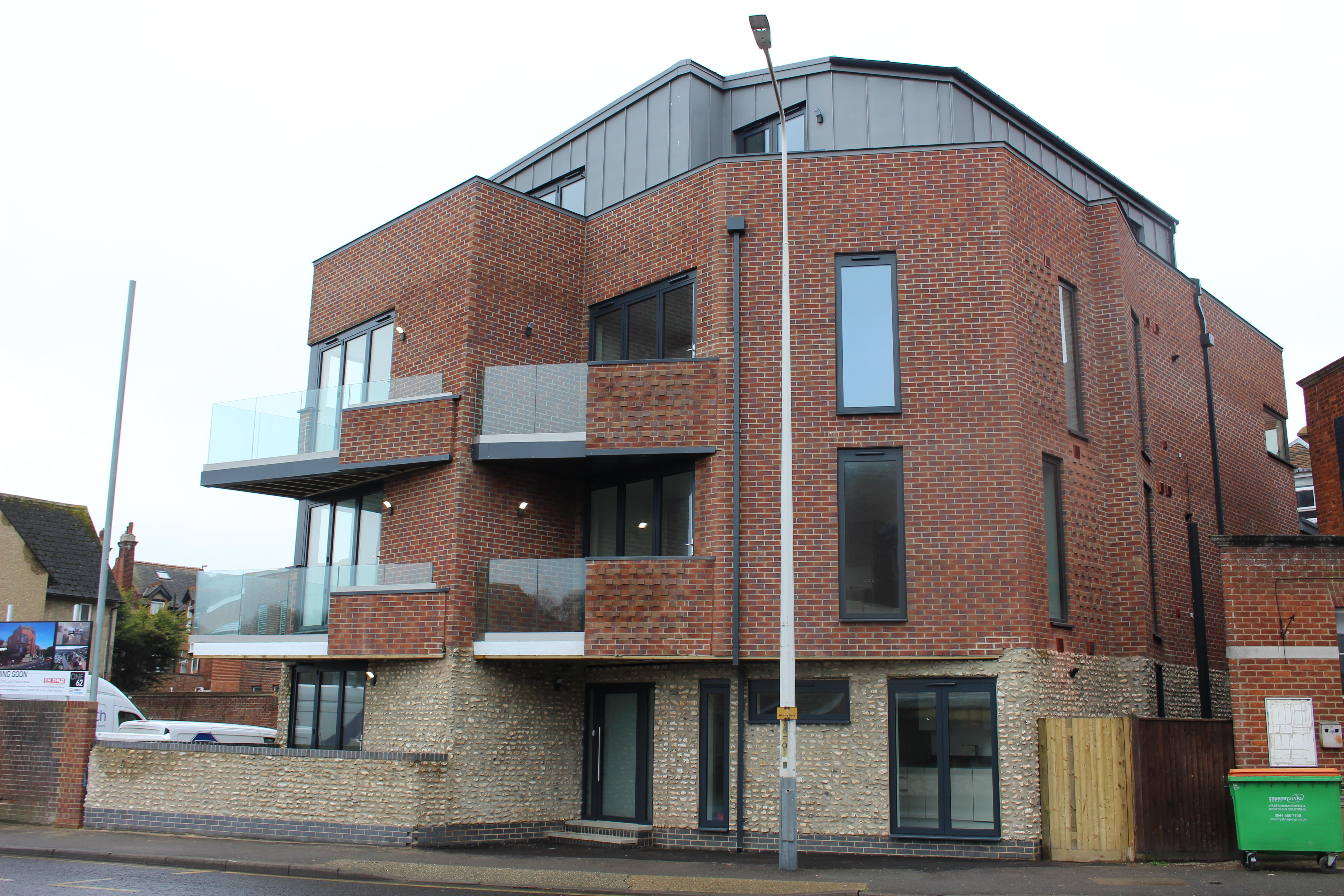

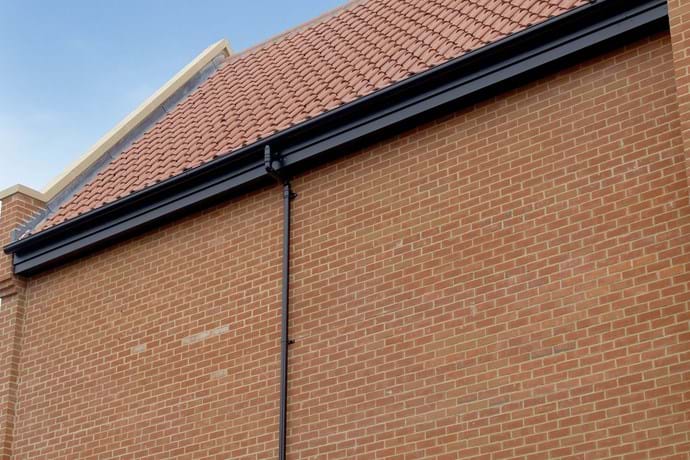

Project Images
Key Features
  • High capacity gutters for traditional or modern buildings
  • Suited to both flush & projecting eaves applications
  • Long life alternative to PVC gutters
Gutter Profiles

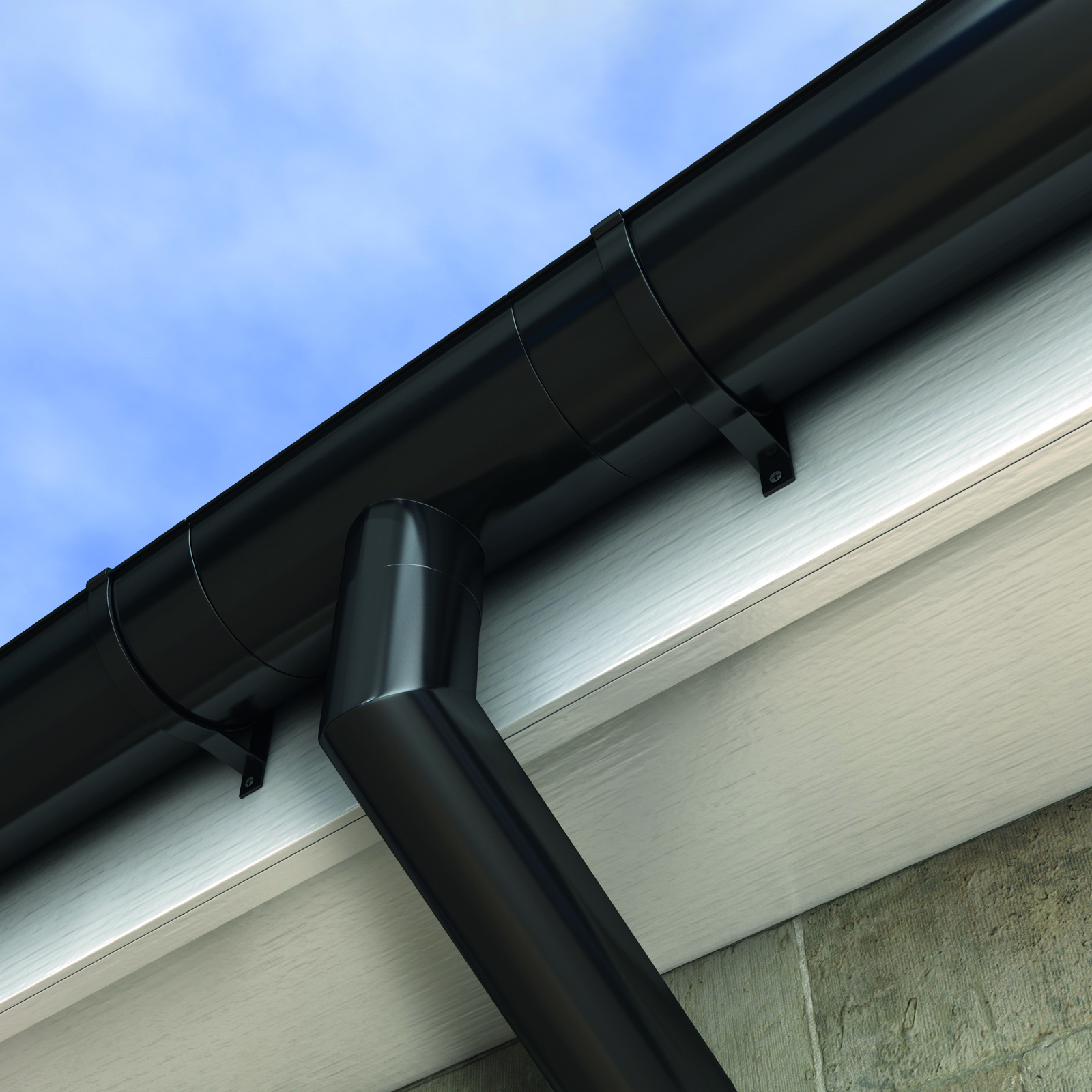

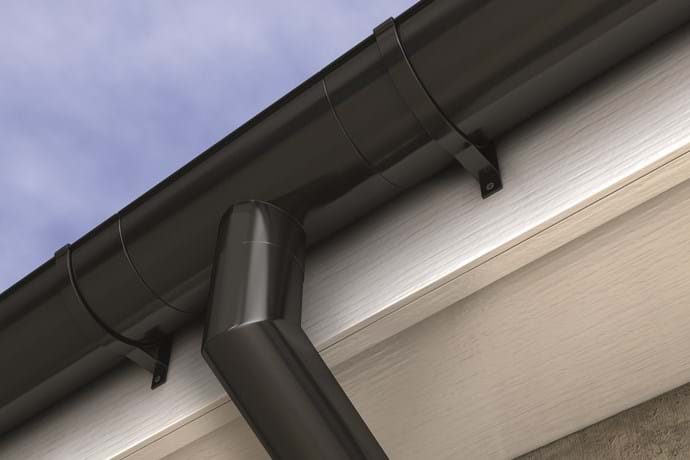

AX SnapFix Beaded Half Round

AX SnapFix Beaded Half Round

Available in:

112 x 100mm AXSBH11
125 x 100mm AXSBH12
150 x 100mm AXSBH15
AX SnapFix Beaded Deep Run

AX SnapFix Beaded Deep Run

Available in:

125 x 100mm AXSDR12

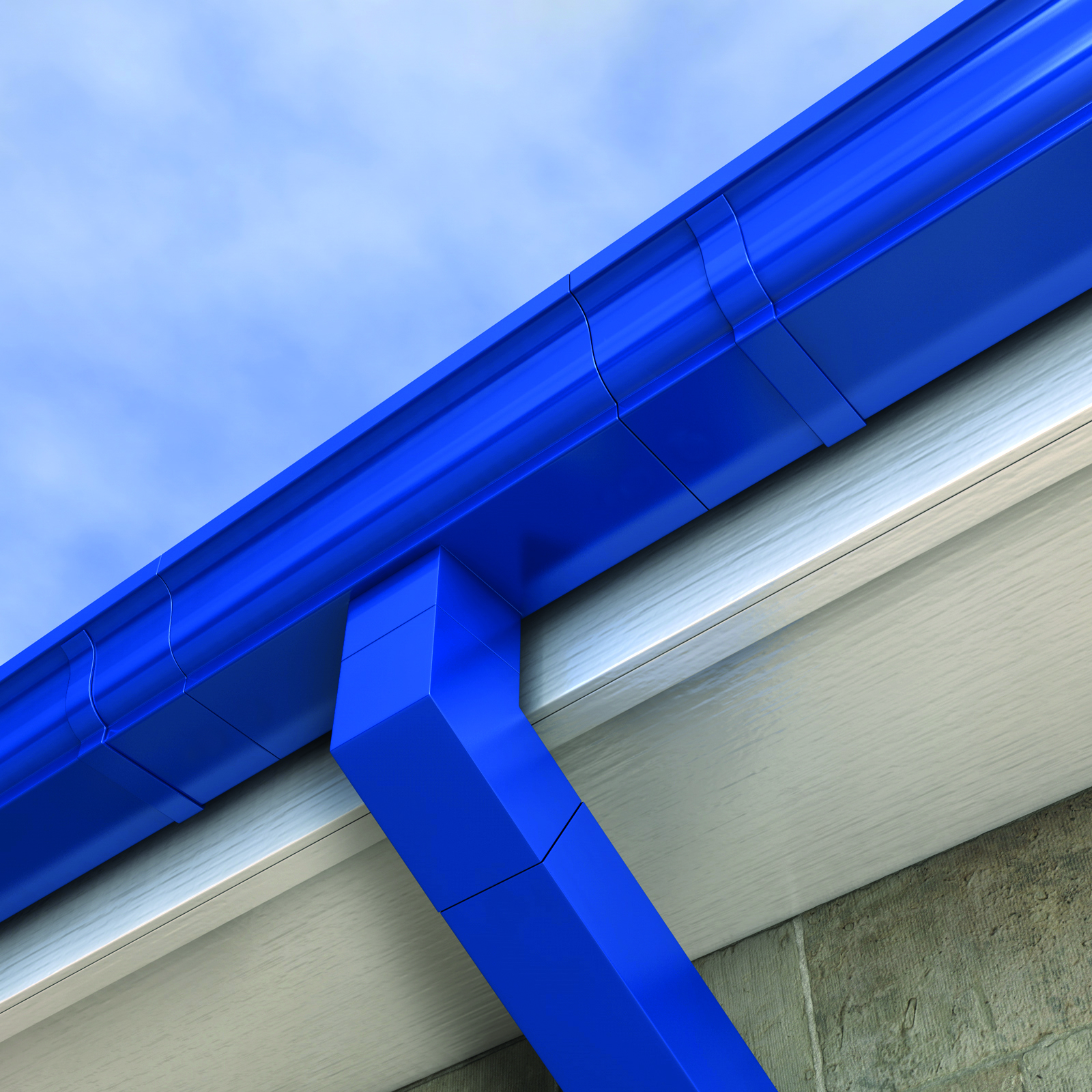

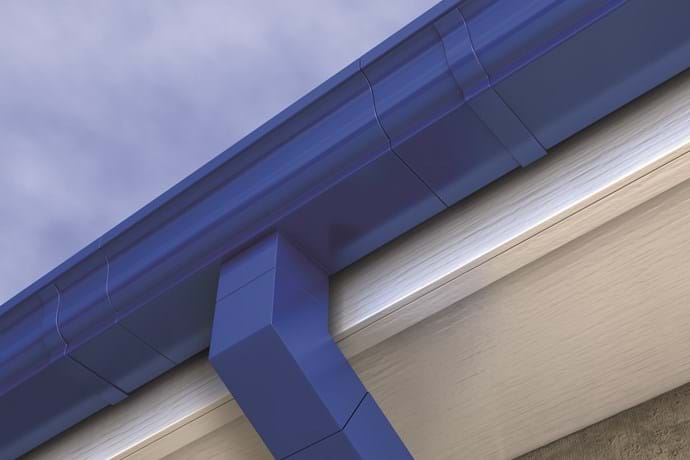

AX SnapFix Moulded

AX SnapFix Moulded

Available in:

125 x 100mm AXSMG12
AX Moulded

AX Moulded*

Available in:

150 x 100mm AXMG15
200 x 150mm AXMG20

*Standard AX (Uses nuts & bolts). Does not use the new SnapFix system.

  • 3 gutter profiles available in 3 metre lengths in a choice of sizes
  • Designed to fully accommodate thermal movement at every joint
  • Lightweight, durable and highly corrosion resistant
  • Life expectancy of aluminium: 40 years (rural/suburban areas); up to 25 years (industrial & marine areas)
  • Easy to handle and fix
  • Aluminium is 100% recyclable
  • BBA Approved polyester powder coating process, Factory applied at Alumasc
  • 26 standard colours with additional BS or RAL colours available to special order
  • Also available in plain mill finish for on-site painting
Available Colours

Order a Product / Colour sample
Request a sample
Error loading Partial View script (file: ~/Views/MacroPartials/InsertUmbracoFormWithTheme.cshtml)
  • Wet sealed and bolted joints - very simple well proven method
  • Gutter joints are secured with screws or bolts through integral holes/slots
  • Fixed by brackets as well as an option to direct fix for the moulded profile
  • Minimal maintenance requirements
  • UK manufactured under ISO 9001 and ISO 14001 factory certified conditions
  • Based on aluminium extrusions to BS 1474:1972, material 6063 T6
Installation Guides for AX Gutters



Download the AX SnapFix Half Round installation guide here.

Download the AX SnapFix Moulded installation guide here.

Download the AX Moulded installation guide here.
