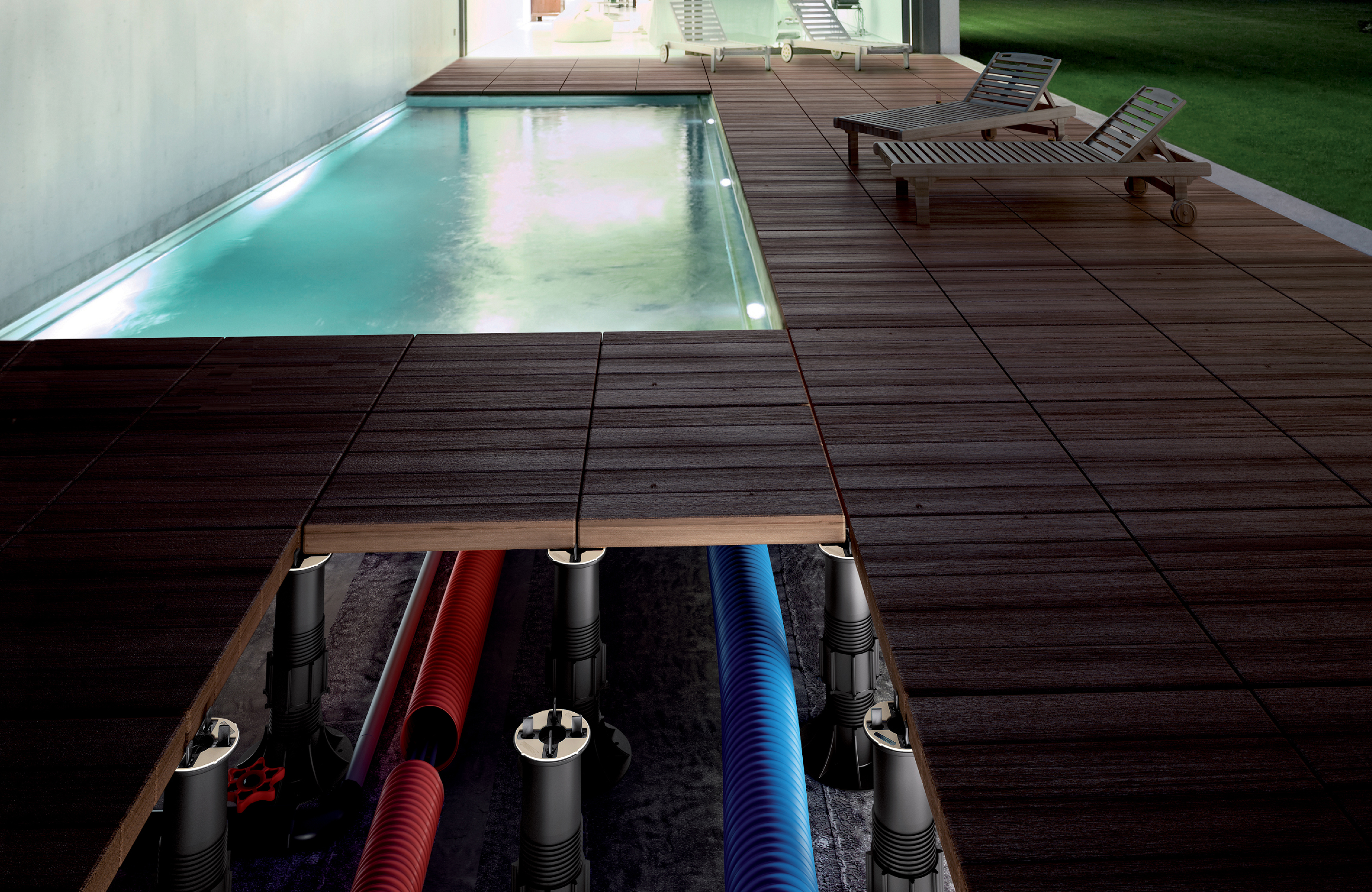

Harmer Modulock is a fully engineered raised pedestal system for supporting paving slabs, timber or plywood sheet decking at varying heights from the sub-structure. Available with a Self-Levelling head, a Fixed Head or the NEW Timber Decking Self Levelling Head.

Product Images
Key Points

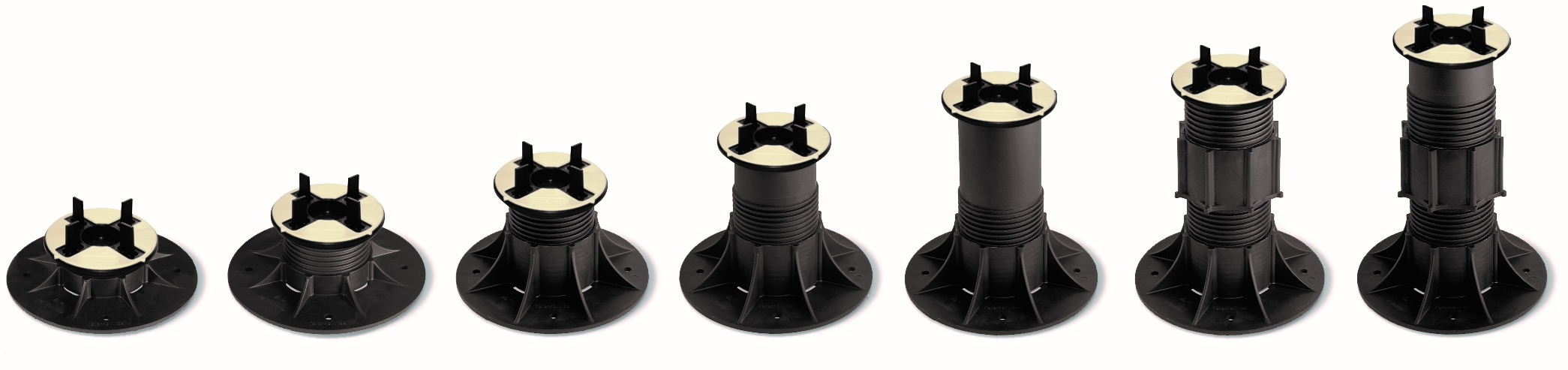

  • Wide range of height adjustment from 28mm - 550mm

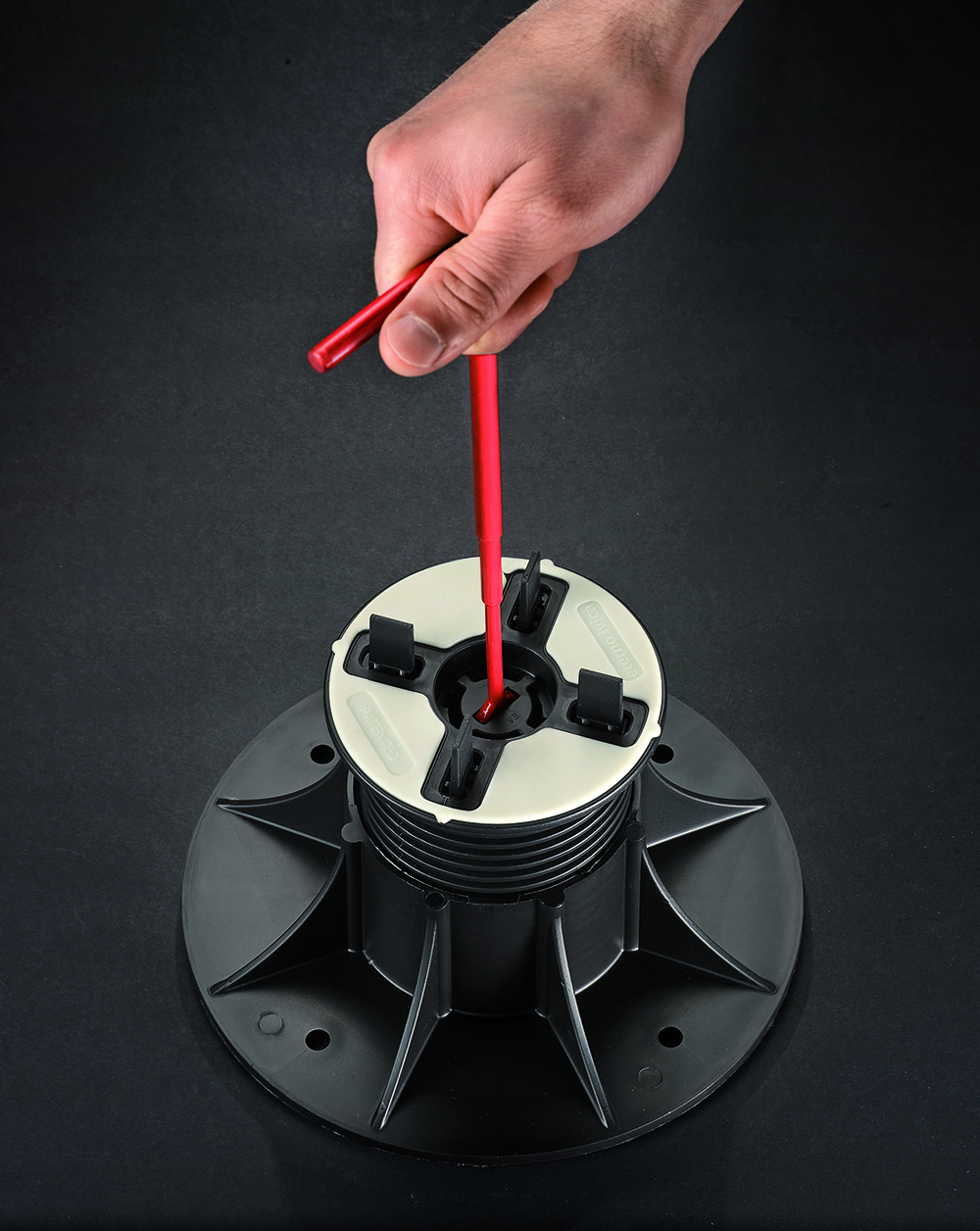

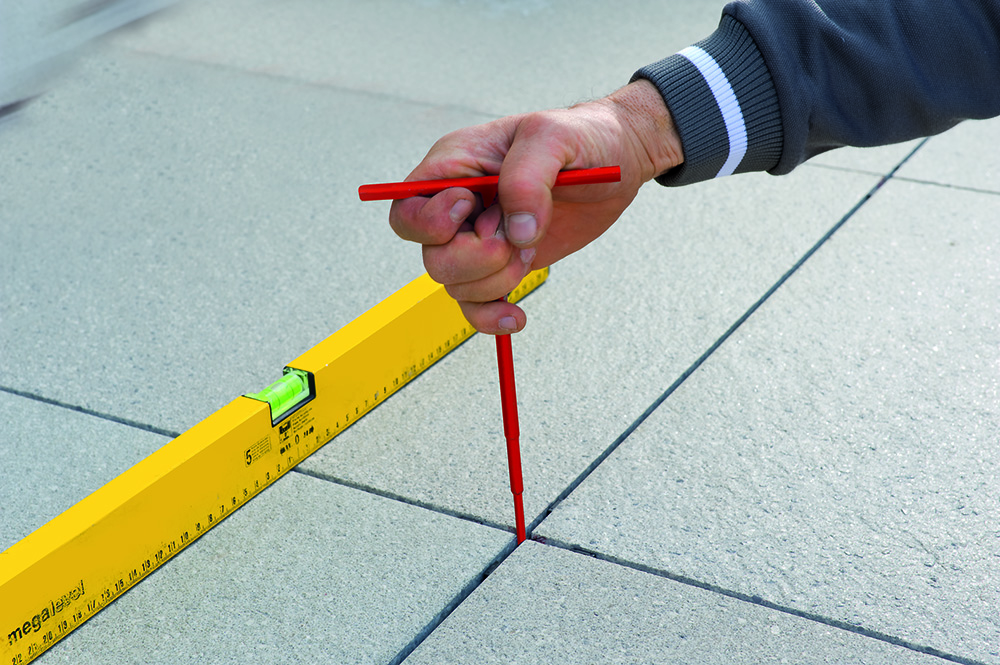

  • Fine adjustment for both height and levels
  • There are 2 different types of head
  • The self-levelling head compensates for gradients up to 5 deg
  • For use in terraces, walkways, balconies and ballasted roof constructions
  • Threshold drainage with the level access requirements of part M
  • Pedestrian Load rated class K3
  • Channel lengths in a choice of three depths: 30mm, 40mm or 50mm
  • Modulock Channels form part of the overall drainage plan for most types of flat roof or deck construction.
  • Height adjustable feet elevate and correct cross falls and any irregularities in the supporting surface.
  • Buildings are protected from weathering at the venerable point where hard surface meets structure.
  • Channels and gratings are available in Grade 304 stainless steel or galvanised mild steel
  • Available with either a grill or slot grate finish
Installation & Fixing



  • Straight line end to end installation with simple location clips ensures the system is fully stable
  • Factory manufactured or site formed irregular angles accommodate change in direction
  • Modulock channels can be supported directly on the structural deck or supported on height adjusters for raised paving, varying from 50mm to 150mm
Self Levelling Head for Paving - Overview and Installation
Fixed Head for Paving - Overview and Installation

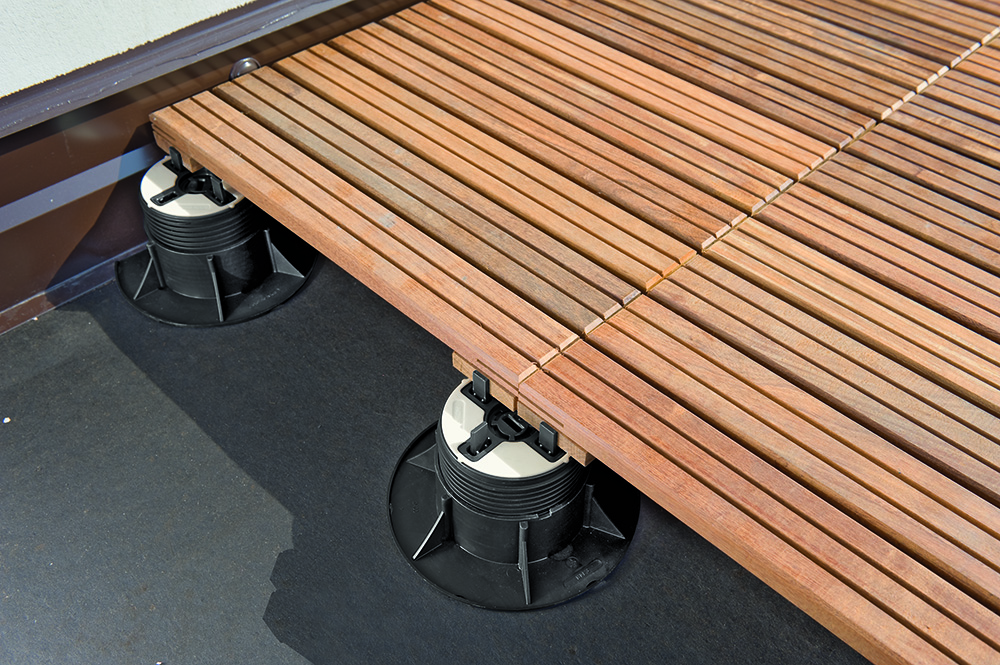

Self Levelling Head for Decking - Overview and Installation
Fixed Head for Decking - Overview and Installation
